Magnetic chip conveyor can be customized according to the requirements of the drawings but also according to your machine to provide the overall structure or pit design if necessary can also be measured on-site design.
Magnetic chip conveyor structure is compact smooth operation low noise the most suitable transport is the magnetic particles block chips and the length of less than 150mm chip breaking. Magnetic chip conveyor main magnetic field is strong so that it has a good chip performance magnetic chip conveyor is a quantitative chip removal that is each group of magnetic materials can absorb the maximum amount of debris is fixed. Even if the work surface accumulation of more chips it is also a fixed amount of chip transport. In addition the magnetic chip conveyor parts are all enclosed in the shell the work panel with non-chip foreign body it will not cause the machine stuck overload. Magnetic chip conveyor with automatic structure automatically adjust the chain tightness. Magnetic chip conveyor can be customized according to the requirements of the drawings but also according to your machine to provide the overall structure or pit design if necessary can also be measured on-site design.
|

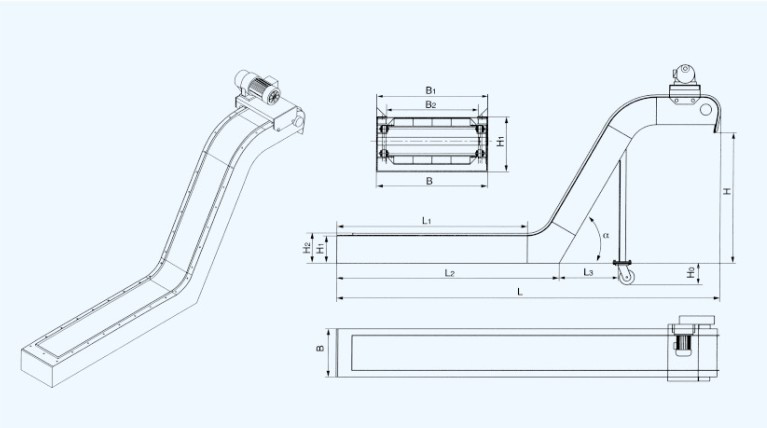

model |
B |
B1 |
H(m） |
H1 |
H2 |
H3/L1 |
L(m） |
α |
Chip volumekg/h |
Chip volume |
Cooling the pumpL/min |
|
ZLYC200 |
200 |
≥350 |
0～3 |
130 |
H1+≥30 |
use |
0.6～10 |
0° |
100 |
0.2～0.75 |
25 |
|
|
Magnetic chip conveyor can be customized according to the requirements of the drawings but also according to your machine to provide the overall structure or pit design if necessary can also be measured on-site design.
