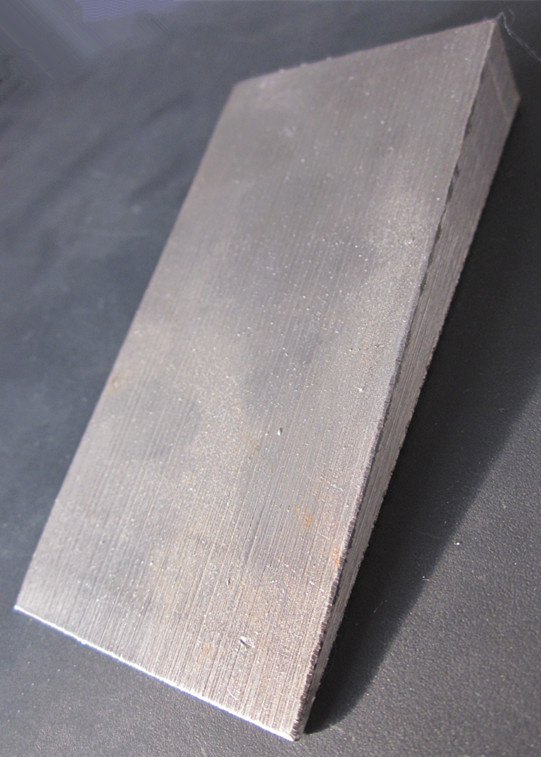

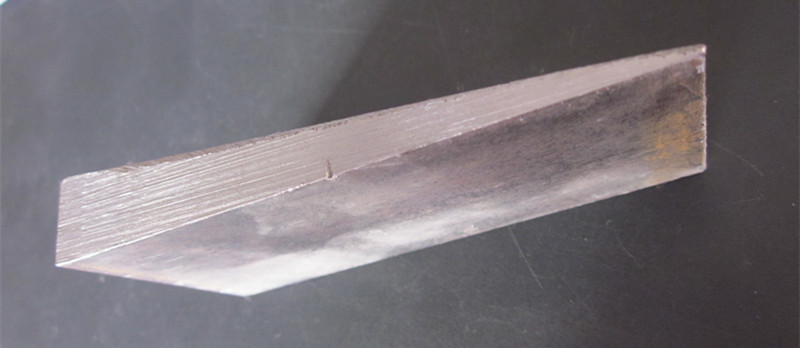

Oblique horn by classification Introduction
Cast iron oblique horn steel oblique horn explosion-proof oblique horn three. Which cast iron oblique horn material can be divided into HT250 steel oblique horn is Q235 low carbon steel forging or mechanical mechanic made. Explosion-proof oblique horn material for beryllium bronze slanting.
Oblique horn main purposes
Oblique horn for the level of various equipment and parallel adjustment the equipment in the course of the operation does not occur vibration tilt to ensure the good operation of the machine to reduce machine wear and ensure equipment safety; oblique horn Features easy to use Quick mostly based
The user needs to manufacture according to the actual equipment base design requirements oblique horn drawings and then according to the drawings processing production.
Oblique horn Specifications
Oblique horn generally no specific specifications generally according to the weight of the equipment design drawings custom processing. But the commonly used specifications are 100 * 50; 120 * 60; 120 * 80; 150 * 80; 160 * 80; 200 * 100; 200 * 120; 200 * 150; 240 * 120; 50hz rail to install the oblique horn commonly used specifications is 100 * 50120 * 60 150 * 80 180 * 90 200 * 100 and several other the thickness of the guide rail according to the height of the set the slope is generally more than 3 we returned To the customer made a kind of 150 * 80 * 30-8 need to open u-slot groove width is 25-30 the length is 110 or so.
